Troubleshooting: Unable to Connect to Cisco's SSL Clientless VPN Service

Version Affected: All



Overview

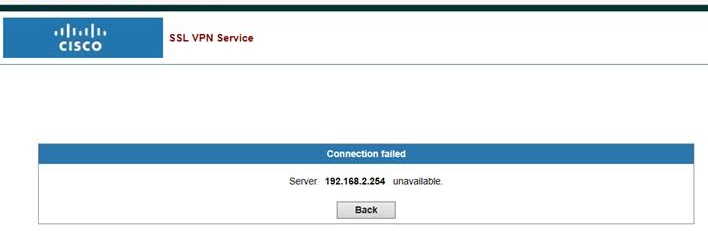

Connecting to a SecureAuth server through Cisco's SSL Clientless VPN service fails with Connection failed. Server [IP address] unavailable.

This same generic message is shown regardless of what is actually preventing the connection, so the real cause has to be confirmed separately.



Cause

Cisco's SSL Clientless VPN service cannot read the SHA-2 512 ECDSA appliance certificate that SecureAuth binds to IIS by default. This is confirmed if a VPN connection succeeds through Cisco's AnyConnect client, but fails specifically through Cisco's SSL Clientless VPN service.



Resolution

Bind a different certificate to the Default Web Site in IIS — a SHA-1 appliance certificate or a purchased wildcard certificate will work.

1. Open Internet Information Services (IIS) Manager.

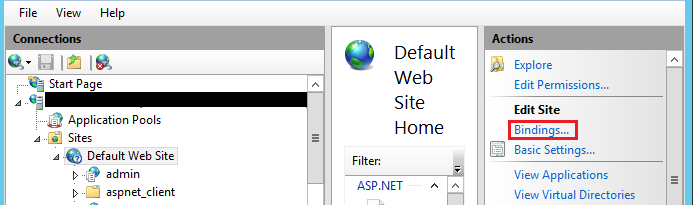

2. In the left-hand panel, expand the directory under the machine's name, expand Sites, and click Default Web Site.
3. In the right-hand panel, click Bindings...

4. In the Site Bindings window, select https 443 and click Edit...

5. From the SSL certificate drop-down, select an alternative to the SHA-2 512 ECDSA appliance certificate. Use View... to confirm you've selected the right one.
6. Click OK, then test the VPN connection again.

If the desired certificate does not appear in the SSL certificate drop-down, it may not have been imported correctly — confirm the certificate is in the Personal folder of the Local Machine certificate store, and that it has an associated private key.
