Troubleshooting: OAuth2/OIDC URI Generates a 401 Error on WinSSO Realms

Version Affected: All



Overview

A realm using Windows Single Sign-On (WinSSO) returns an HTTP 401 Unauthorized error when a client accesses one of its OAuth 2.0/OpenID Connect (OIDC) endpoints -- for example, https://SecureAuthIdP/SecureAuth#/.well-known/openid-configuration.



Cause

OAuth 2.0/OIDC endpoints are meant to be reachable using anonymous authentication, but a realm with Windows Authentication enabled blocks anonymous requests to all of its endpoints by default -- including its OAuth 2.0/OIDC endpoints -- which produces the 401 error. The realm's OidcAuthorize.aspx endpoint is the one exception, since it's meant to use the realm's Windows Authentication credentials to identify the user.

Resolution:

The fix depends on which endpoint is affected.

For the .well-known/openid-configuration endpoint:

1. Create a folder named .well-known inside the affected realm's folder -- for example, D:\Secureauth\SecureAuth#\.well-known. Windows Explorer will not let you create a folder whose name starts with a period, so create it from PowerShell or the command line instead:

# PowerShell
Set-Location D:\Secureauth\SecureAuth#
New-Item .well-known -ItemType Directory

# Command Prompt
CD D:\Secureauth\SecureAuth#
MD .well-known

2. Inside the new .well-known folder, create a web.config file containing the following, which enables anonymous authentication for just that folder:

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <system.webServer>
      <security>
        <authentication>
          <anonymousAuthentication enabled="true" />
        </authentication>
      </security>
    </system.webServer>
    <system.web>
      <identity impersonate="false" />
    </system.web>
</configuration>

For the realm's other OAuth 2.0/OIDC endpoints:

The remaining OAuth 2.0/OIDC endpoint files can each be switched to anonymous authentication directly in IIS Manager, since they don't have the same restriction on folder names starting with a period:

1. Open IIS Manager and navigate to the realm.
2. In Content View, select one of the endpoint files -- for example, OidcToken.aspx.
3. Switch to Features View.

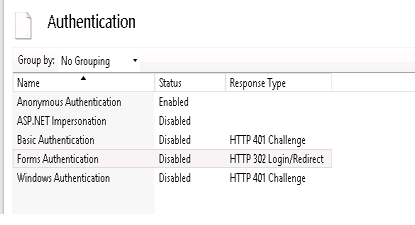

4. Open Authentication.

5. Set Anonymous Authentication to Enabled.
6. Repeat for each of the realm's other OAuth 2.0/OIDC endpoints: OidcToken.aspx, OidcUserInfo.aspx, OidcEndSession.aspx, OidcCheckSession.aspx, OAuthintrospect.aspx, and OAuthRevocate.aspx. Do not change OidcAuthorize.aspx, since it's meant to use the realm's Windows Authentication credentials.
