Version Affected: All

Overview

This article explains how to restrict access to a realm by the end client's real IP address, using an IIS URL Rewrite request-blocking rule that checks the X-Forwarded-For or X-MS-Forwarded-Client-IP header instead of the connection's REMOTE_ADDR value — which reflects a load balancer or proxy's IP address rather than the actual client's.

This same kind of restriction can also be configured without editing IIS directly: for Classic realms, using Adaptive Authentication rules; for New Experience realms, using New Experience Policies. The steps below cover the IIS URL Rewrite approach directly.

Restrict Access by End-Client IP Address in IIS

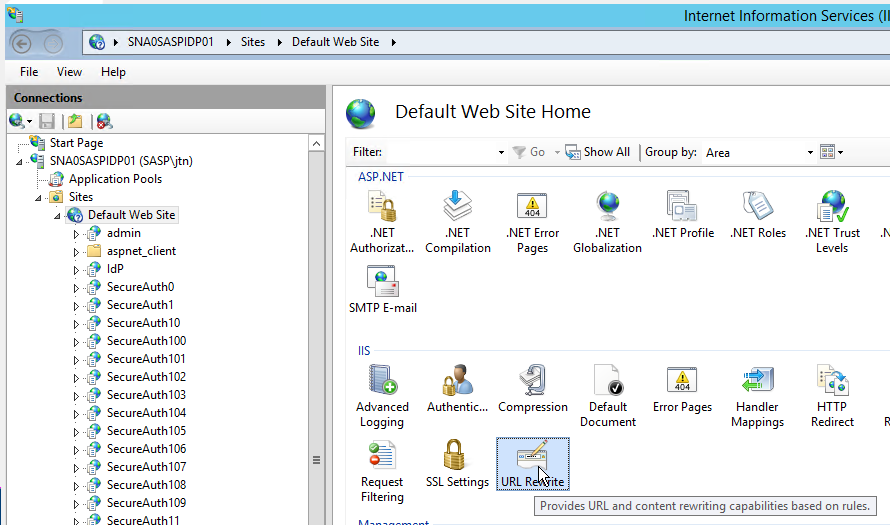

In IIS Manager, go to the realm you want to restrict access to (or the top-level site, to apply the restriction globally) and open URL Rewrite. If URL Rewrite is not installed, install it from the official Microsoft IIS website — this requires a reboot.

IIS Manager Default Web Site Home page with the URL Rewrite icon highlighted.

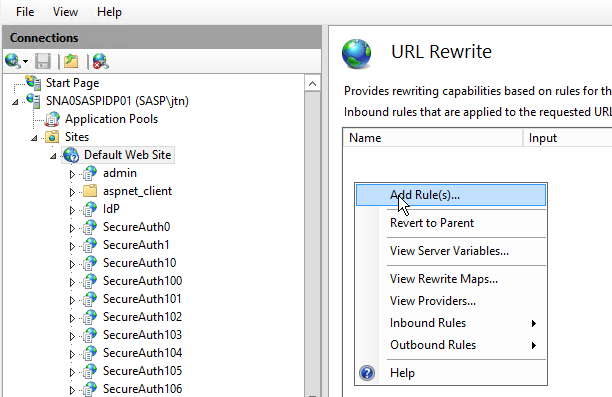

Right-click and select Add Rule(s)....

URL Rewrite page with a context menu open and Add Rule(s) highlighted.

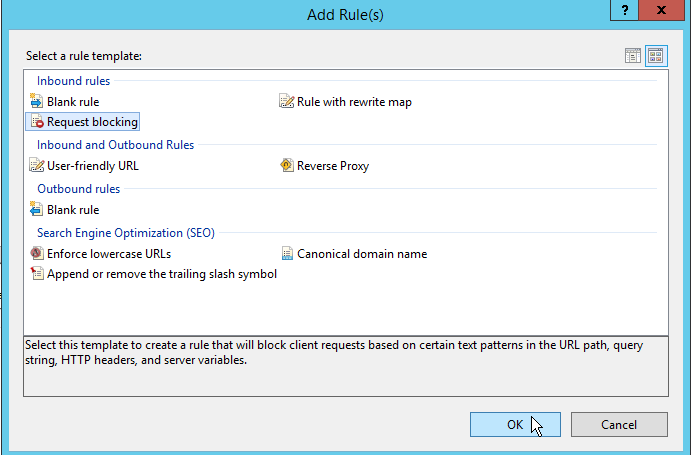

Select Request blocking under Inbound rules, then click OK.

Add Rule(s) dialog with Request blocking selected under Inbound rules.

Configure the rule: set Block access based on to IP Address, Block request that to Matches the Pattern, enter the pattern to block (for example, 192.168.*.*) using Wildcards, and set How to block to Send an HTTP 403 (Forbidden) Response.

Add Request Blocking Rule dialog configured to block IP addresses matching the pattern 192.168.*.* with an HTTP 403 response.

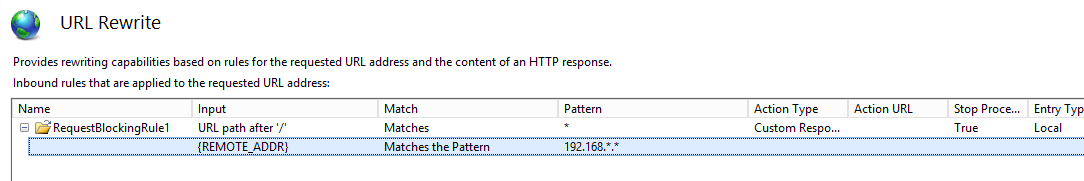

Double-click the new rule to edit its condition.

URL Rewrite rule list showing RequestBlockingRule1 with a condition matching REMOTE_ADDR against the pattern 192.168.*.*.

Change the condition input from {REMOTE_ADDR} to {HTTP_X_MS_FORWARDED_CLIENT_IP} — or {HTTP_X_FORWARDED_FOR}, depending on which header carries the real client IP in your environment — so the rule evaluates the end client's actual IP address instead of the address IIS sees the connection coming from.

Edit Condition dialog with Condition input set to HTTP_X_MS_FORWARDED_CLIENT_IP, matching the pattern 192.168.*.*.

Click OK.

No IIS reset is required for the change to take effect.
