How To: Configure a Box (SP-Initiated) SAML Integration

Version Affected: All



Overview

This article covers additional configuration that may be needed to complete a Box (SP-Initiated) SAML integration, supplementing SecureAuth's official Box (SP-Initiated) Integration Guide. Box has changed its integration requirements over time, so some realms need these additional steps beyond the guide.

Configure Box (SP-Initiated) SAML Integration

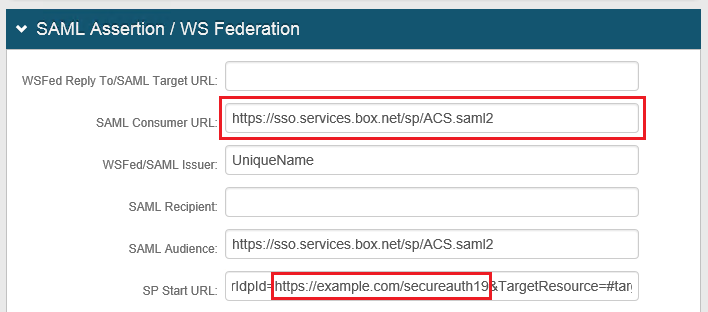

1. On the Post Authentication tab, set the SAML Consumer URL to Box's ACS URL — for example, https://sso.services.box.net/sp/ACS.saml2. Box does not support SP-initiated by POST on either side, so confirm this with a Box engineer if it comes up.

2. The SP Start URL may also be required — for example, https://sso.services.box.net/sp/startSSO.ping?PartnerIdpId=https://example.com/secureauth19&TargetResource=#target_resource#.

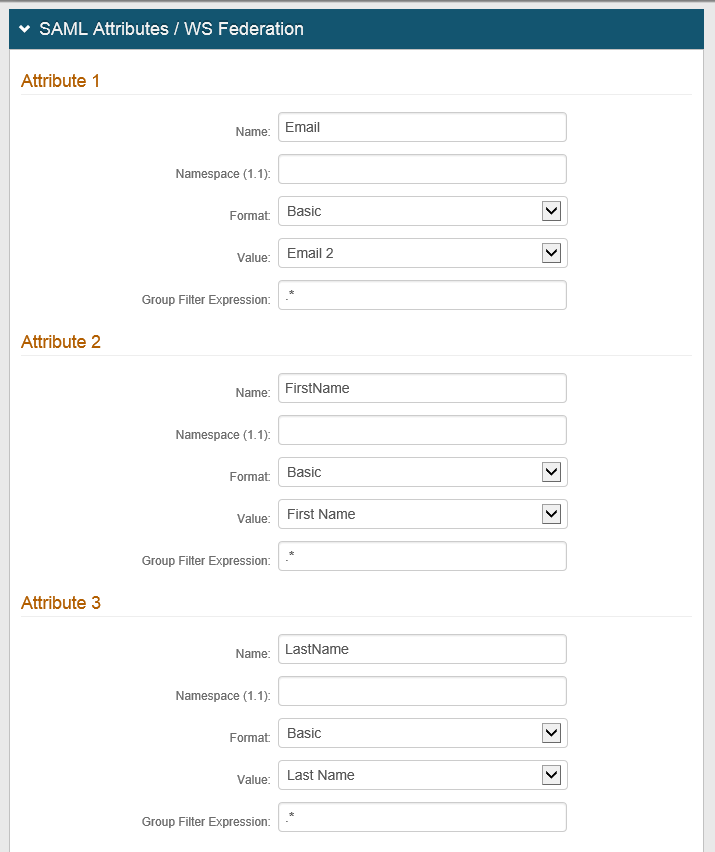

3. Configure the following SAML Attributes: Email, FirstName, and LastName.

These attribute names and formats must match what Box expects on their side — if the integration still fails after configuring them, confirm the expected values with Box support.

Special Considerations

Box's admin console for SAML configuration may not be user-configurable without a Box engineer on the call. If the integration is still not working after completing the steps above, contact Box support to confirm the settings on their side.
