Troubleshooting: PFX Certificate Enrollment Produces an Invalid Public Key Security Object File – SecureAuth Support

Version Affected: All

Overview

When downloading a PFX certificate and attempting to install it, an error states: This file is invalid for use as the following: Personal Information Exchange.

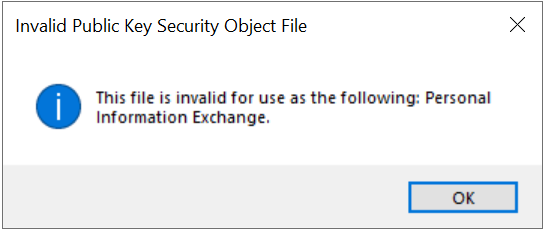

Error dialog stating the file is invalid for use as a Personal Information Exchange.

The downloaded PFX file is also much smaller than expected — around 2KB, compared to a healthy PFX file's roughly 8KB.

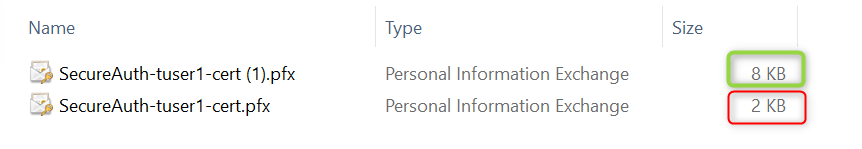

File size comparison showing the downloaded 2KB PFX file next to a healthy 8KB PFX file.

Cause

The downloaded file isn't an actual PFX certificate. The root cause is that the IdP server was unable to contact the SecureAuth Certificate Authority (CA) server to request a real PFX file at the time of enrollment.

Resolution

Find the Certificate URL used by the IdP server, in the SecureAuth Cloud Services section of the System Info tab for the PFX Certificate realm.
Open that URL directly in a browser to test connectivity. A working connection looks similar to:

Browser showing a successful response after opening the Certificate URL directly.

If a different page loads instead — a 404, a timeout page, and so on — the URL can't be reached, so a certificate request can't be made. Investigate the following:

Required network ports closed on the firewall — confirm the ports required for your IdP version are open, per SecureAuth's Cloud Services connectivity documentation.
Incorrect proxy settings — check IIS Application Request Routing, browser/computer proxy settings, and the realm's System Info > Proxy Server Configuration.
An incorrect URL entered in the realm's Certificate URL field — confirm it against the Cloud Services connectivity documentation.
A correct URL that isn't resolving to an active CA server — browse to the base URL (for example, https://us-cloud.secureauth.com) and hover over the browser tab to see which CA server it connects to:

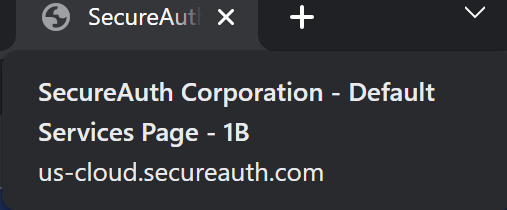

Browser tab tooltip showing which CA server the Certificate URL's base URL is connecting to.

If this looks wrong, open a case with SecureAuth Support and provide this information, along with all other relevant details, in the case.
