How To: Send Group Membership Back in a RADIUS Attribute

Version Affected: All



Overview

This article explains how to configure RADIUS to send back a user's group membership in a RADIUS attribute, so that a RADIUS client (for example, a VPN server) can apply different policies or VPN profiles based on group membership.

Configure Group Membership Mapping

1. Open the SecureAuth RADIUS admin console.
2. Click the RADIUS Clients tab.
3. Click the relevant RADIUS client.
4. In the Data Attribute Mapping section, click the + icon to add a mapping.

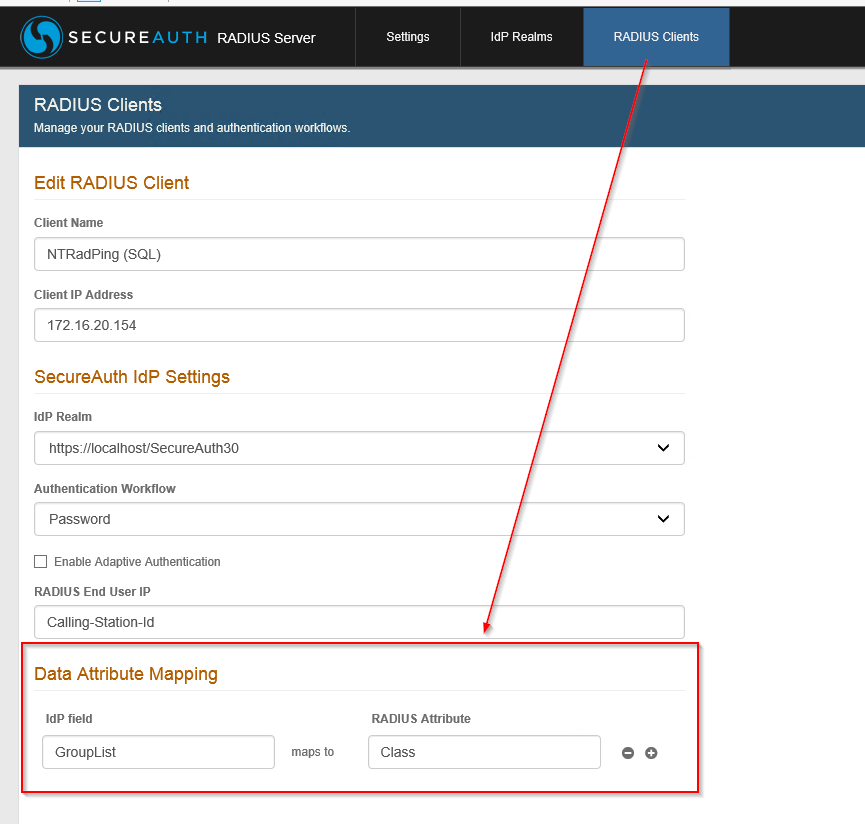

5. Map GroupList to Class, as shown below.

6. Open the Identity Platform (IdP) admin console and click the Data tab for the realm that RADIUS uses.

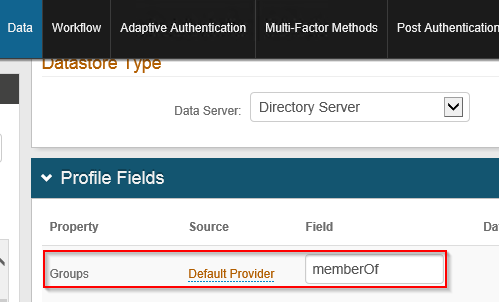

7. Ensure the Groups property is mapped to the Active Directory (AD) attribute memberOf (assuming the data store is AD), as shown below.

Special Considerations

This mapping returns the full distinguished names of the groups. When a user is a member of many groups, or the groups are deeply nested, this can quickly produce a large value. This is particularly relevant for RADIUS, because the RADIUS User Datagram Protocol (UDP) packet size is limited to 4KB. If the resulting RADIUS packet exceeds 4KB, the RADIUS client (for example, a VPN server) will not see it as an Access-Accept, and the authentication attempt will be rejected.
