How To: Speed Up Logons to Webservice Realms

Version Affected: All



Overview

This article explains how to speed up logons to a Webservice realm that uses multiple data stores, by letting users log on against a specific lookup realm directly using their down-level (DOMAIN\Username) logon name.

When a Webservice realm is configured with multiple data stores, each logon attempt searches the realms one after another, which adds a delay. The more realms in use, the more pronounced this delay becomes. Webservice logons can be shortcut so they search the relevant realm directly, instead of searching every realm in sequence.

Configure Down-Level Logons

1. On the Data tab of the Webservice realm, in the Multi-Datastore Membership Configuration section, click Add Realm from Another Server.

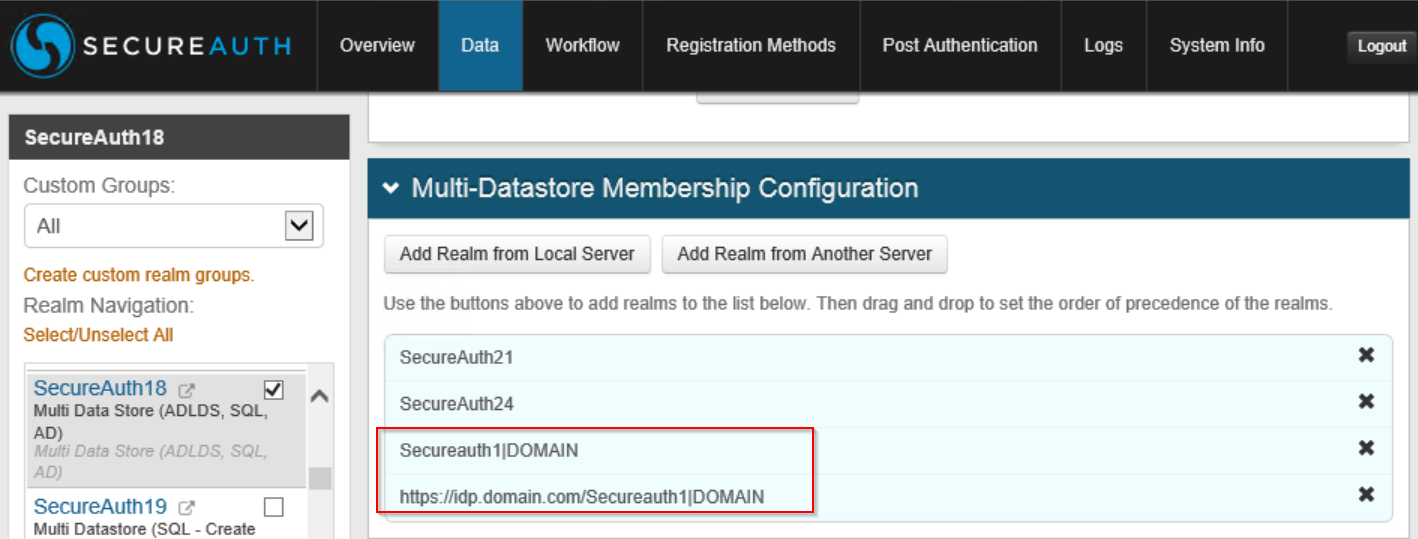

2. Enter the realm name or URL, followed by a pipe character (|) and a realm identifier of your choice. For simplicity, this identifier can be the Active Directory (AD) domain name. For example, for a local realm: SecureAuth1|DOMAIN. For a remote realm: https://idp.domain.com/secureauth1|DOMAIN, as shown below.

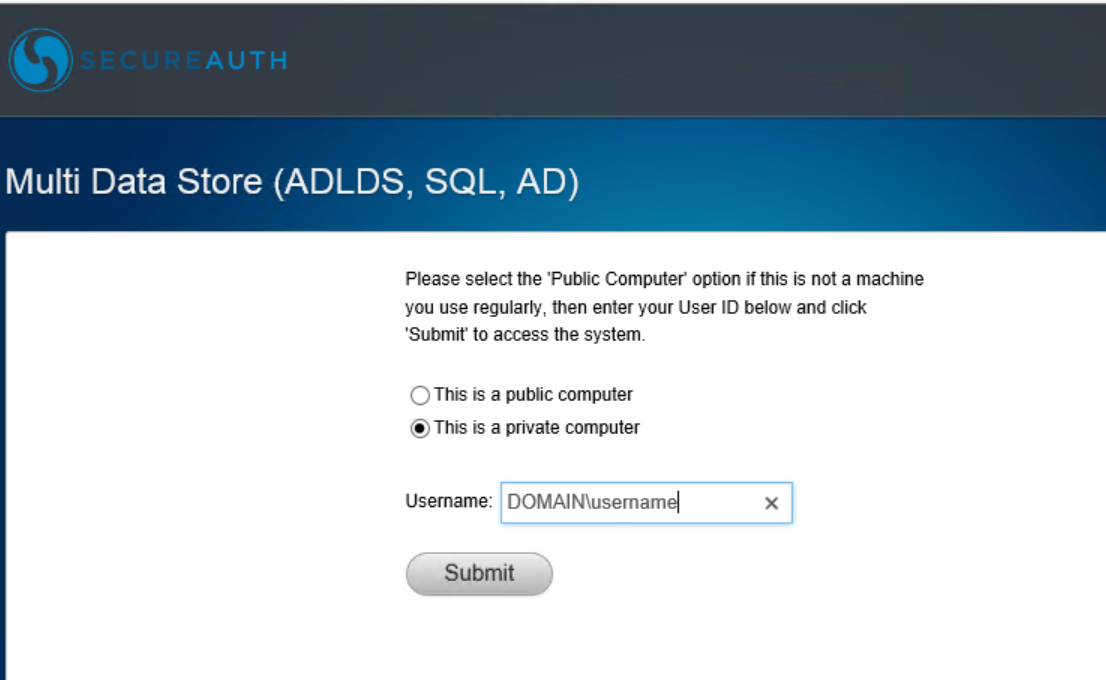

3. Users can now specify the realm or domain the Webservice should use by typing the realm identifier, followed by a backslash, then their username — for example, DOMAIN\username, as shown below.

Special Considerations

This configures the Webservice to search the correct realm directly, but only asserts the plain logon name.
