Troubleshooting: Web Service Error "Negotiate,NTLM" (WinSSO Hosting Realm)

Version Affected: All



Overview

A realm configured to connect to a Web Service realm fails. Debug logs show a request to https://localhost/secureauthxx/webservice/membershipws.svc with the exception: "The HTTP request is unauthorized with client authentication scheme 'Anonymous'. The authentication header received from the server was 'Negotiate,NTLM'."



Cause

The realm hosting the Web Service is configured for Windows SSO.



Resolution:

Consider hosting the Web Service on a realm that is not configured for Windows SSO. If that is not possible, do the following:

1. Open IIS Manager.
2. Navigate to the realm hosting the Web Service.
3. Expand the realm and click the WebService subfolder.
4. In Feature view, double-click Authentication.

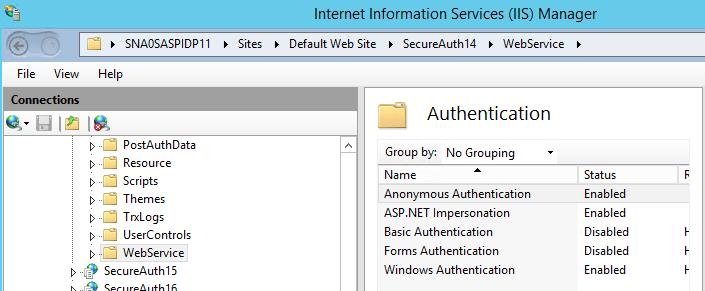

5. Enable Anonymous Authentication, as shown below.

It is now possible to connect to the Web Service again. Consider opening the Admin Console, navigating to the Logs tab on the realms identified above, and turning off the extra logging until it is needed again.
