How To: Encrypt Phone Number Fields in Active Directory

Version Affected: All



Overview

This article explains how to encrypt a phone number field so its value isn't stored in plain text in Active Directory (AD), when using AD account management, including inline.

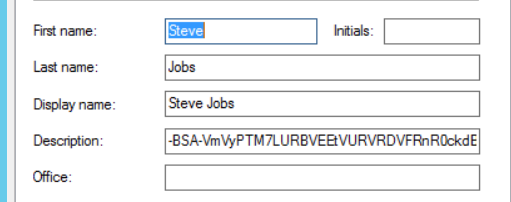

1. The default AD phone attributes — telephoneNumber and mobile — cannot be encrypted, since AD does not allow enough space in those fields to store an encrypted value. Instead, map the phone field to an AD attribute that is large enough — a directory string attribute with at least 550 characters, such as one of the extensionAttributes. (The example below uses the Description attribute only to illustrate the result; extensionAttributes is the recommended field for production use, since Description is normally used for other purposes.)

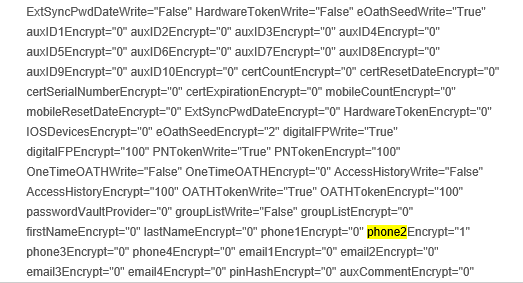

2. In the realm's web.config, set the corresponding phone field's encryption level — phone1Encrypt, phone2Encrypt, phone3Encrypt, or phone4Encrypt — to one of:
   • 0 = No encryption
   • 1 = Standard encryption
   • 2 = Advanced encryption
   • 3 = Standard hash
