Troubleshooting: Administrative Reset with History Check Fails with "The LDAP Server Is Unavailable"

Version Affected: All



Overview

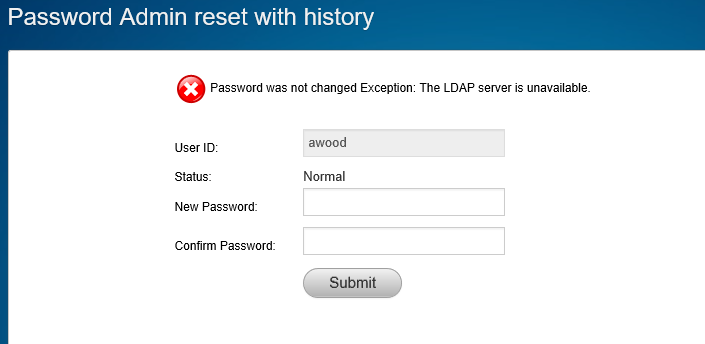

This article explains how to resolve an error where using the Password Reset option Administrative Reset with History Check fails with "Password was not changed Exception: The LDAP server is unavailable," even though the Test Connection on the Data tab works fine.

• See Cause 1 - If this happens generally, regardless of connection type, it's a certificate mismatch caused by using a domain-based connection string.
• See Cause 2 - If this only happens over LDAPS/SSL after upgrading from 9.1 or earlier to 9.2 or later, it's a changed POLICY_HINTS OID.

These causes are not related, so a fix for one cause will not resolve the other cause.



In this article

• Cause 1: Certificate Mismatch from a Domain-Based Connection String
• Cause 2: POLICY_HINTS OID Changed After Upgrading to 9.2 or Later

Cause 1: Certificate Mismatch from a Domain-Based Connection String

The password reset action connects using the connection string specified on the Data tab, which is usually the domain rather than a specific Domain Controller (DC). The DC that responds presents its own certificate, using its own FQDN, which does not match the domain-based connection string — causing a certificate mismatch and the connection to close.

Resolution 1:

To resolve this, edit the connection string to specify a Domain Controller directly instead of the domain:

1. Open the Data tab.
2. Edit the Connection String to specify a Domain Controller. For example, if the domain is wood.example.com and the DC is named mydc, the connection string becomes:


   LDAP://mydc.wood.example.local/DC=wood,DC=example,DC=local



Cause 2: POLICY_HINTS OID Changed After Upgrading to 9.2 or Later

This applies only when using LDAPS/SSL to connect to the datastore. After upgrading from 9.1 or earlier to 9.2 or later, the supported POLICY_HINTS OID changed to the standard value. If the datastore is still running an older Windows Server, its Domain Controller may still use the deprecated OID:

• 1.2.840.113556.1.4.2239 = POLICY_HINTS
• 1.2.840.113556.1.4.2066 = POLICY_HINTS_DEPRECATED

Resolution 2:

To resolve this:

1. Confirm which OID the datastore's Domain Controller uses. One way to check is to connect to the datastore using the LDP tool and look at the supportedControl section.
2. Apply the latest hotfix, since there have been minor changes to LDAPS.
3. Open the web.config for the datastore realm used for password reset.
4. In the Membership Provider section, alongside the other datastore settings, add a new ldapServerPolicyHintsOID attribute set to the POLICY_HINTS_DEPRECATED OID value:


   ldapServerPolicyHintsOID="1.2.840.113556.1.4.2066"

5. Save and test.
