Troubleshooting: OAuth Introspect Endpoint Unexpectedly Returns a 400

Version Affected: All



Overview

Sending a POST request to the OAuth Introspect endpoint can unexpectedly return a 400 error.

Cause

There are several reasons IIS can return a 400 for this endpoint, generally because the POST request does not conform to the expected format or content. One common cause is a missing Audience value. This shows up in the realm's Debug logs at the time of the call to the Introspect endpoint as:

LogChannel="SA_DEBUG" FormatVersion="0.0.1" EventID="40999" Timestamp="2025-02-14T11:18:19.248Z" CompanyID="" ApplianceID="" Realm="" UserID="" BrowserSession="0529cbae-c97a-4639-ad9c-8c64b5769a4b" StateMachineID="" RequestID="6058b71e-0b45-4f39-a6d9-aff594e87a70" UserHostAddress="" Message="[JwtValidator].[ValidateJwt]: Exception: Microsoft.IdentityModel.Tokens.SecurityTokenInvalidAudienceException: IDX10214: Audience validation failed. Audiences: '[PII is hidden. For more details, see https://aka.ms/IdentityModel/PII.]'. Did not match: validationParameters.ValidAudience: '[PII is hidden. For more details, see https://aka.ms/IdentityModel/PII.]' or validationParameters.ValidAudiences: '[PII is hidden. For more details, see https://aka.ms/IdentityModel/PII.]'.
at Microsoft.IdentityModel.Tokens.Validators.ValidateAudience(IEnumerable`1 audiences, SecurityToken securityToken, TokenValidationParameters validationParameters)
at System.IdentityModel.Tokens.Jwt.JwtSecurityTokenHandler.ValidateTokenPayload(JwtSecurityToken jwtToken, TokenValidationParameters validationParameters)
at SecureAuth.IdentityModel.OpenIDConnect.Validators.JwtValidator.ValidateJwt(String jwt, String audience, String issuer, SecurityKey securityKey, Boolean validateLifetime)"

Resolution

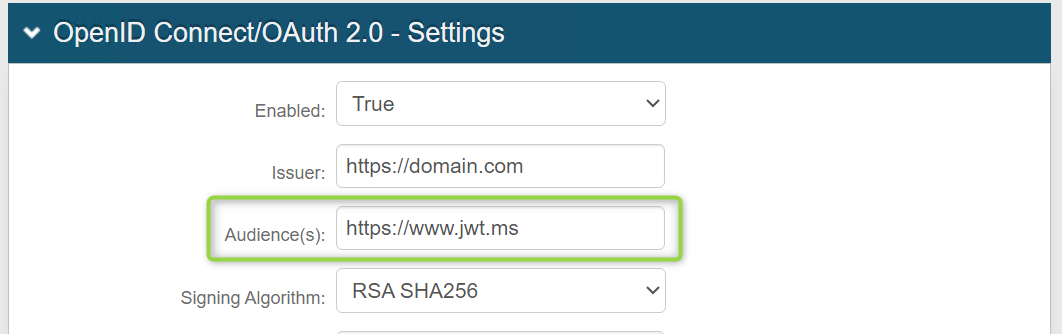

Add valid content to the Audience(s) field of the OIDC realm, under the Post Auth tab:
