How To: Combine Two Realms' Workflows with a Redirect Token and Adaptive Authentication

Version Affected: All



Overview

Some workflows require combining the functionality of two different realms into a single sign-on experience for the user, without relying on the deprecated multiple-workflow function. This article explains how to use a redirect token together with Adaptive Authentication's User/Group Restriction to combine two realms' workflows while still reaching a single post-authentication step. The pre-auth token created in one realm is passed to a second realm for its own workflow, then passed back to the first realm for post-authentication.

Combine Two Realms' Workflows with a Redirect Token

In this example, Realm 2 is the realm the user starts at, and Realm 1 is the second realm its Adaptive Authentication redirects to for users outside a chosen group.

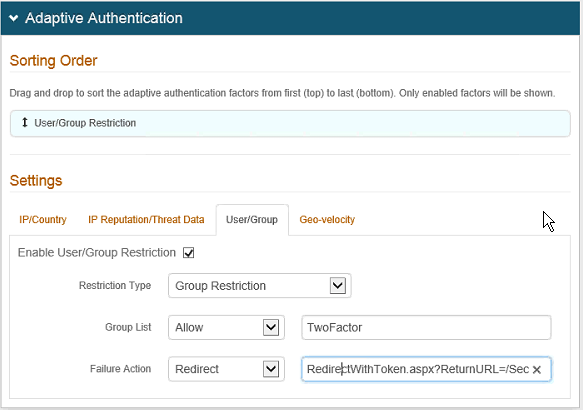

1. On Realm 2's Workflow tab, go to the Adaptive Authentication section and enable User/Group Restriction under User/Group. This carries the token created during Realm 2's pre-auth process over to Realm 1, so the user isn't asked for their username and password again.

   Set Group List to Allow a specific group (for example, TwoFactor): any user in that group continues straight through Realm 2's own workflow to post-authentication, and any user not in that group is redirected instead to Realm 1's workflow, via Failure Action: Redirect set to:

   RedirectWithToken.aspx?ReturnURL=/SecureAuth1

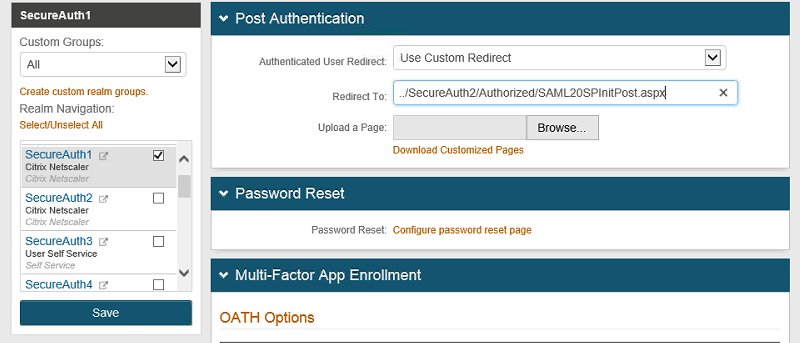

2. On Realm 1 (the realm Realm 2's Failure Action redirects to), go to its Post Authentication tab and set Authenticated User Redirect to Use Custom Redirect. In Redirect To, set a relative path that sends the token back to Realm 2's own post-authentication page:

   ../SecureAuth2/Authorized/SAML20SPInitPost.aspx

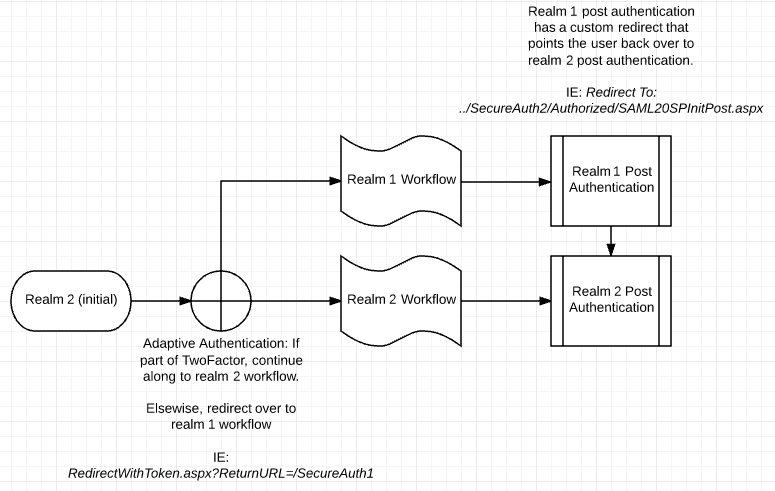

Once both realms are configured, the workflow behaves as follows: users in the TwoFactor group continue directly through Realm 2's own workflow to Realm 2 post-authentication. Users outside that group are redirected to Realm 1's workflow, reach Realm 1 post-authentication, and Realm 1's custom redirect then sends them back to Realm 2 post-authentication — so both paths end up completing the same post-authentication step.
