Troubleshooting: RSA Cryptography Error When Using SAML Signing with WindowsSSO

Version Affected: All



Overview

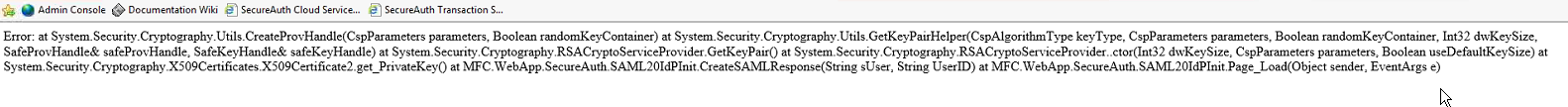

When using SAML assertion or message signing together with WindowsSSO, an RSA cryptography error appears, similar to:

System.Security.Cryptography.RSACryptoServiceProvider.GetKeyPair() ... at System.Security.Cryptography.X509Certificates.X509Certificate2.get_PrivateKey() at MFC.WebApp.SecureAuth.SAML20IdPInit.CreateSAMLResponse(String sUser, String UserID)

Cause

There can be several causes, generally related to a certificate issue:

• Missing permissions on the certificate's private key
• Loss of the private key
• The wrong certificate selected, or none selected

Resolution

Work through the following steps to narrow down the specific cause.

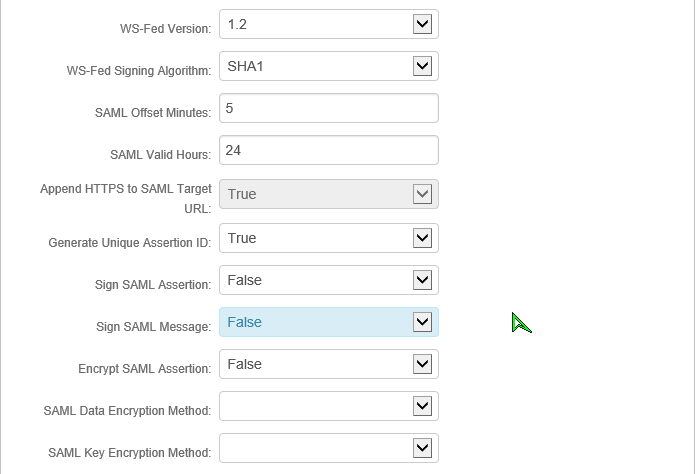

1. Confirm the error only happens with SAML assertion or message signing by temporarily setting Sign SAML Assertion and Sign SAML Message to False on the realm's Post Authentication tab, then check whether SAML works without them.
2. If the error still occurs, open the Certificates console (certlm.msc) and go to Personal > Certificates.

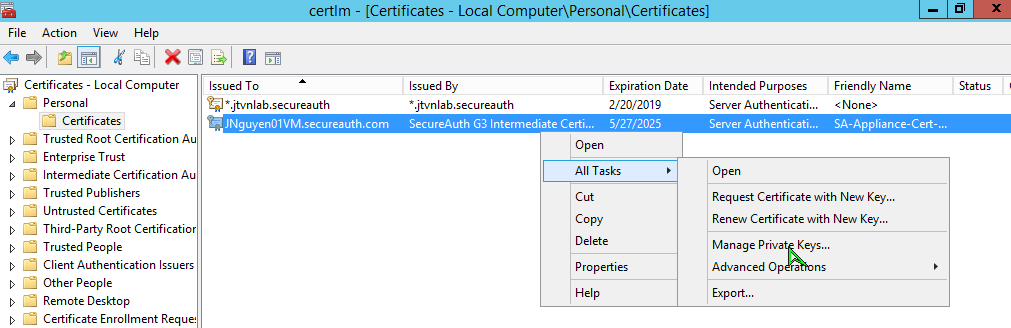

3. Right-click the certificate used for signing, then select All Tasks > Manage Private Keys.

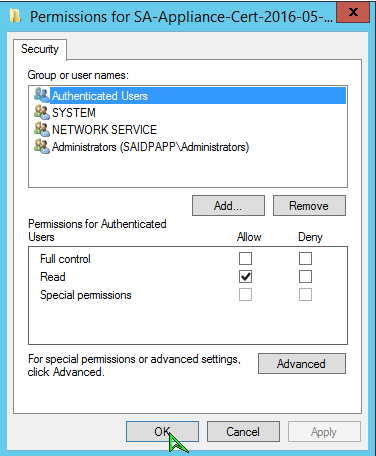

4. Confirm Authenticated Users has at least Read access to the private key.
5. Once the permissions are correct, re-enable SAML assertion and message signing and test again.
