How To: Check an SP-Initiated SAML Realm Is Signing with SHA1 or SHA2

Version Affected: All



Overview

This article explains how to confirm whether an SP-Initiated SAML realm (for example, Salesforce) is currently signing its SAML assertions with SHA1 or SHA2.

Check a Realm Is Signing with SHA1 or SHA2

This requires SAML Tracer Extension for Firefox, Chrome or Edge


1. Clear the browser cache.

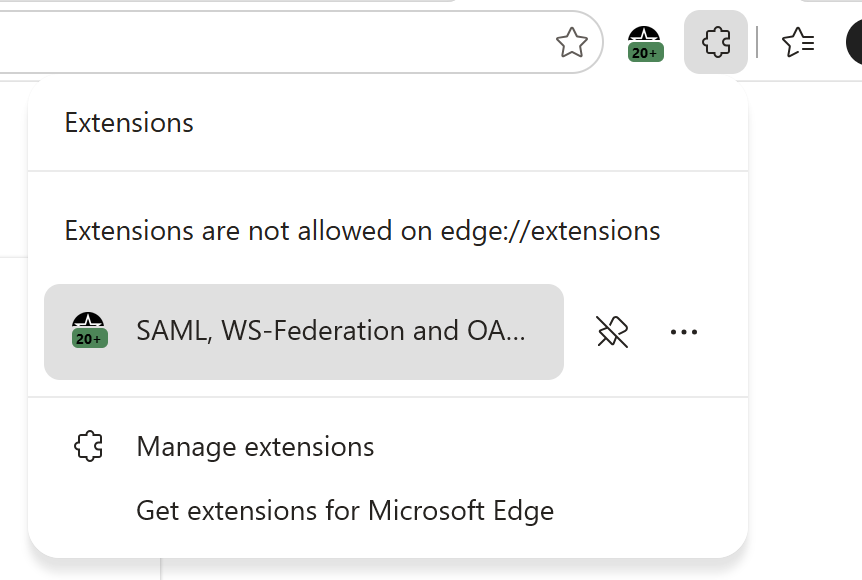

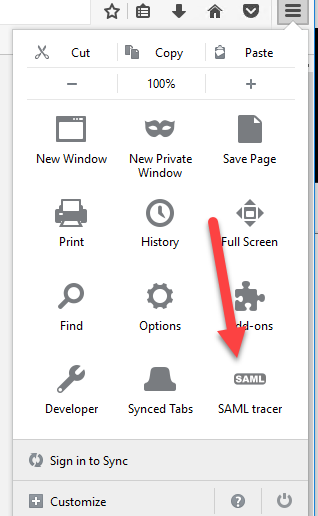

2. Open the browser and open the SAML-tracer add-on (Firefox / Chrome + Edge (Chromium))



3. Browse to the login page of the service and start the login process via SAML SSO
4. Log in to the application. Data will start to appear in SAML-tracer as you do.

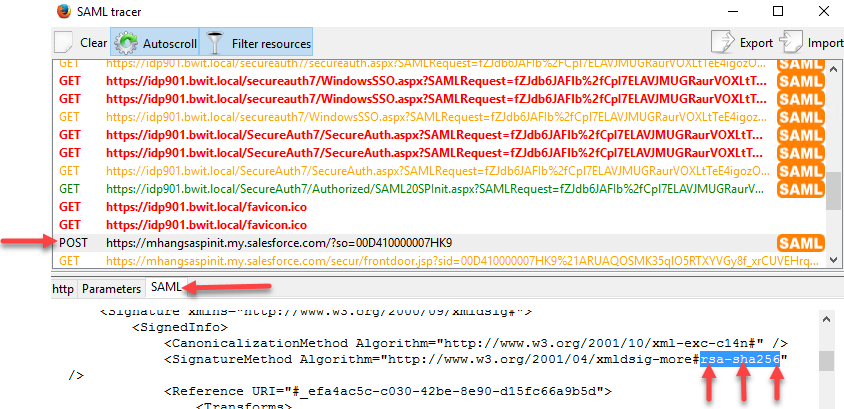

5. In SAML-tracer, click the line for the POST request, then open its SAML tab. Look for the SignatureMethod element's Algorithm attribute:

   <SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256" />

   An algorithm ending in rsa-sha256 (shown above) means the realm is signing with SHA2. An algorithm ending in rsa-sha1 means it's signing with SHA1.
