Version Affected: All

Overview

This article explains how to confirm which certificate is actually bound to an Active Directory Lightweight Directory Services (AD LDS) server's SSL port, when testing AD LDS over SSL. Having a certificate present in the server's Personal certificate store does not necessarily mean that certificate is the one AD LDS is using — AD LDS can be tricky to set up correctly.

Confirm the Certificate Bound to the AD LDS SSL Port

Confirm the certificate is imported into the Personal certificate store of the ADAM service account (not just the Computer's own Personal store).

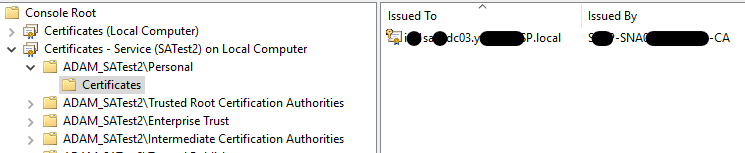

Certificate Manager console showing the ADAM service account's own Personal certificate store, with a certificate listed under Issued To and Issued By.

Once a certificate with a private key is added and its root is trusted, restart the AD LDS service to bind the certificate.
To verify which certificate the AD LDS SSL port is actually presenting, use OpenSSL — either on a Linux system, via Windows Subsystem for Linux on a Windows machine, or a Windows build of OpenSSL. Run:

openssl s_client -connect myadlds.server.dom.ext:636

This returns output similar to the following (edited for length):

CONNECTED(00000003)
depth=0 CN = server.domain.local
verify error:num=20:unable to get local issuer certificate
verify return:1
---
Certificate chain
0 s:CN = server.domain.local
i:DC = local, DC = domain, CN = SERVER-CA
---
Server certificate
-----BEGIN CERTIFICATE-----
MIIF/zCCBOegAwIBAgITeQAAAGomGCp3XmutVwACAAAAajANBgkqhkiG9w0BAQsF
...
-----END CERTIFICATE-----
subject=CN = server.domain.local
issuer=DC = local, DC = domain, CN = SERVER-CA
---
New, TLSv1.2, Cipher is ECDHE-RSA-AES256-GCM-SHA384
Verify return code: 21 (unable to verify the first certificate)
---

The subject and issuer lines in the output identify the certificate actually bound to and presented by the AD LDS SSL port, confirming whether it's the certificate you expect.
