Troubleshooting: Microsoft Client Hangs During IWA Authentication

Version Affected: Cloud



Overview

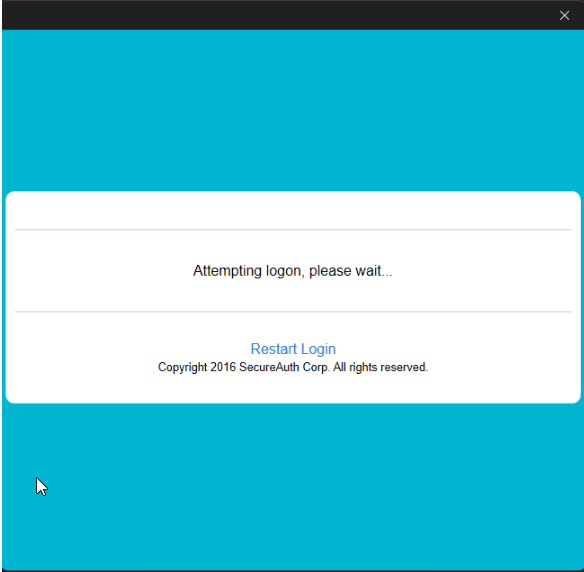

Integrated Windows Authentication (IWA) lets a user on a domain-joined Windows machine authenticate with their current Windows credentials via Kerberos, without a separate username and password prompt. When a Microsoft client fails to obtain a valid Kerberos ticket during IWA, authentication can hang indefinitely on a "please wait" screen instead of falling back to a username and password prompt. This affects SecureAuth's Cloud IWA service.

Cause

The affected Microsoft clients use the legacy Edge WebView browser engine, which does not fall back to a username and password prompt when the Kerberos handshake fails. You can confirm this by checking the client's user agent string for Edge/18.x.

Resolution:

Force the workstation to use Edge WebView2 instead of the legacy Edge WebView. This requires both of the following:

• Microsoft 365 version 16.0.13530.20424 or later.
• Edge WebView2 installed on the workstation.

If both conditions are met, add the following registry value on the workstation:

1. Navigate to HKEY_CURRENT_USER\SOFTWARE\Microsoft\Office\16.0\WEF.
2. Add a new DWORD value named Win32WebView2.
3. Set its value to 1.

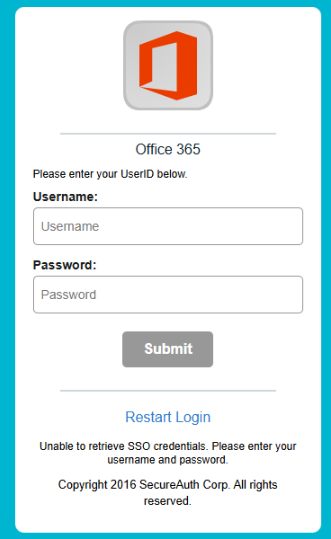

After adding this value, the Microsoft client falls back to a username and password prompt instead of hanging when Kerberos fails:

This confirms the workstation is now falling back to Edge WebView2 instead of hanging on the hosted Edge WebView.
