Troubleshooting: AD LDS Datastore Connection Test Fails With 'The Specified Directory Service Attribute or Value Does Not Exist' Error

Version Affected: All



Overview

Testing an AD LDS (Active Directory Lightweight Directory Services) datastore connection over SSL can fail with the following error, even when the connection settings otherwise follow the standard configuration documentation:

The specified directory service attribute or value does not exist

Cause

The datastore's connection string is configured incorrectly -- specifically, a domain name is entered in the Domain field, and the Service Account isn't specified as a full distinguished name.

Resolution:

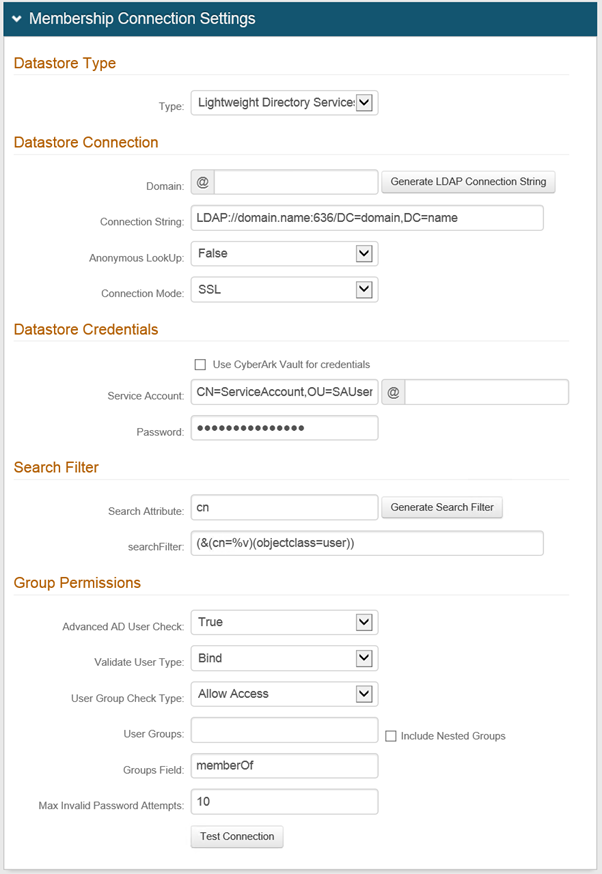

1. Go to the realm's Data Store tab and open the AD LDS datastore's Membership Connection Settings.
2. Clear the Domain field in both the Datastore Connection section and the Datastore Credentials section -- leave it blank.
3. Set Service Account to the account's full distinguished name (for example, CN=ServiceAccount,OU=SAUsers,DC=domain,DC=name), instead of a domain\username or UPN-style value.

4. Click Test Connection to confirm.
