Troubleshooting: TOTP Fails to Authenticate After Changing the Realm's Datastore Type – SecureAuth Support

Version Affected: All

Overview

Users can fail to authenticate with TOTP (Time-based One-Time Password) during Two-Factor Authentication after the realm's datastore type is changed.

Cause

When a user enrolls for TOTP, the value is looked up against whichever Active Directory attribute the datastore type's Search Attribute pointed to at the time of enrollment -- for example, sAMAccountName. Changing the realm's datastore type afterward can change the default Search Attribute, so the realm can no longer find the user's TOTP value using the new attribute.

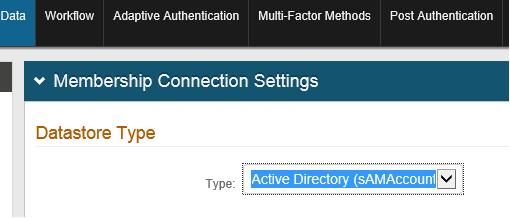

The Data tab's Membership Connection Settings, showing Datastore Type set to Active Directory (sAMAccountName).

Resolution:

Go to the realm's Data tab and open Membership Connection Settings.
In the Search Filter section, set Search Attribute back to whichever attribute was in use when users originally enrolled for TOTP. The searchFilter field itself does not need to change.

The Search Filter section, with Search Attribute set to samAccountName and searchFilter set to (&(saMAccountName=%v)(objectclass=*)).

Users should now be able to authenticate with TOTP again.
