Troubleshooting: WinSSO Realm's Federation Metadata Shows 'The Resource Cannot Be Found' – SecureAuth Support

Version Affected: All

Overview

Trying to view a Windows SSO (WinSSO) realm's Federation Metadata (for example, at /SecureAuth2/FederationMetadata/2007-06/FederationMetadata.xml) can fail with:

Server Error in '/SecureAuth2' Application. The resource cannot be found.

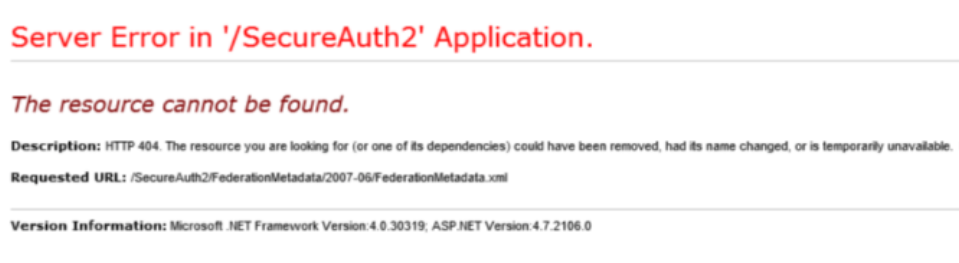

Server Error page reading The resource cannot be found, requested URL /SecureAuth2/FederationMetadata/2007-06/FederationMetadata.xml.

If the realm is instead configured for Forms Based Authentication (FBA), this error does not occur and the metadata XML loads normally.

Cause

A WinSSO realm typically has User Impersonation enabled. The virtual path to /FederationMetadata/2007-06/ inherits this impersonation setting from the root of the realm's IIS virtual directory.

Resolution:

Disable impersonation specifically for the FederationMetadata/2007-06 virtual path:

On the realm's System Info tab, click Edit Web Config -- or decrypt the realm and edit web.config with a text editor instead.
Insert the following XML within the <location path="FederationMetadata/2007-06"> section:

<system.web>
  <identity impersonate="false" />
</system.web>

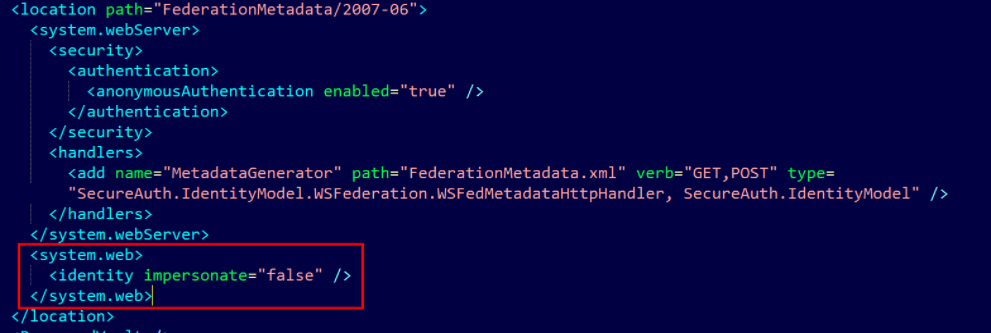

web.config showing the FederationMetadata/2007-06 location section with identity impersonate set to false added inside a system.web element.

Save the changes.
