How To: Enable Extended WS-Federation Metadata – SecureAuth Support

Version Affected: All

Overview

Some WS-Federation (WSFed) applications need to read the IdP's metadata, including details such as the supported claims -- but the standard metadata exported from the Admin Console does not include this. This article covers how to enable extended WSFed metadata.

Enable WS-Trust Endpoints

Open the Admin Console and go to the WS-Fed realm's Post Authentication tab.
Scroll down to WS-Trust Endpoint Configuration and click View and Configure WS-Trust Endpoints.

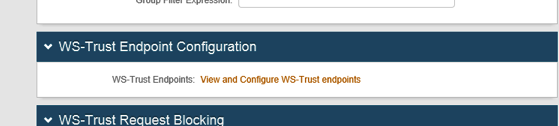

WS-Trust Endpoint Configuration section with the View and Configure WS-Trust endpoints link.

Enable the first two endpoints: /2005/usernamemixed and /2005/windowstransport.

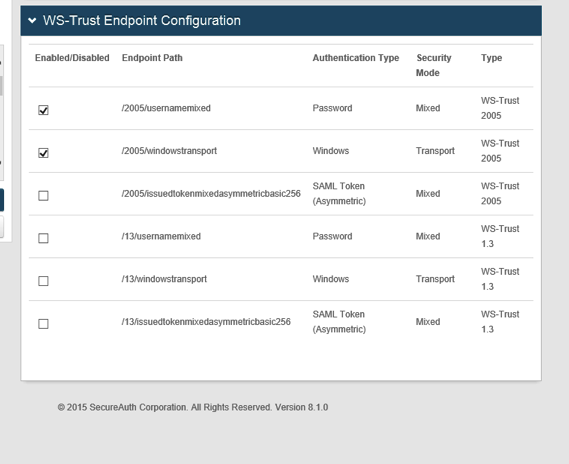

WS-Trust Endpoint Configuration table with /2005/usernamemixed and /2005/windowstransport checked as enabled.

Click Save.
Access the metadata using a URL such as:

https://awood05vm.example.local/SecureAuth28/FederationMetadata/2007-06/FederationMetadata.xml

(Replace the server name and realm number with your own.)
