How To: Configure Filebeat to Use a Proxy

Version Affected: 9.2 and later



Overview

When the IdP doesn't have a direct connection to the internet and can only reach it via a proxy, Filebeat -- which by default communicates directly with us-audit.secureauth.com on port 443 -- needs to be configured to use a SOCKS5 proxy instead. Filebeat cannot use an HTTP proxy (the more common type, typically used by browsers) -- it must be SOCKS5.

Configure Filebeat to Use a SOCKS5 Proxy

1. Stop the SecureAuth Filebeat service in services.msc.
2. Open the Filebeat configuration file in a text editor:

C:\Program Files\SecureAuth Corporation\FileBeat\filebeat.yml

3. Find the Logstash output section.
4. Below the commented-out #ssl.certificate_authorities line, insert the following, replacing the IP address and port with the correct values for the environment:

# SOCKS5 proxy server URL
proxy_url: socks5://10.10.10.10:8080

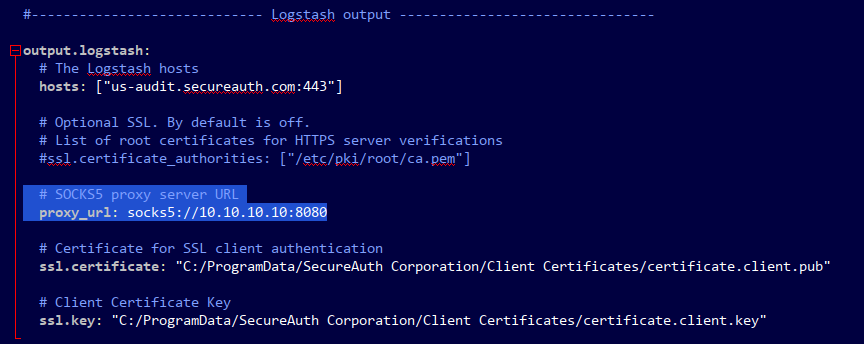

The resulting file should look like this:

5. Save the file and start the SecureAuth Filebeat service.

Special Considerations

If Filebeat is pointed at an HTTP proxy instead of SOCKS5, the Filebeat log shows Failed to connect to backoff(async(tcp://us-audit.secureauth.com:443)): proxy: failed to read greeting from SOCKS5 proxy. If no SOCKS5 proxy is available, remove the lines added above and instead configure firewalls to allow the IdP direct access to us-audit.secureauth.com on port 443. For the full list of addresses to allow, see SecureAuth's Cloud Services documentation.
