How to speed up RADIUS authentication when users are members of many groups

Version Affected:  All

Description:

If users are members of many groups, 100+, there may be delays when attempting to authenticate against RADIUS.

Cause:

Not all RADIUS clients can filter a large amount of data, mainly groups, quickly enough, which may cause delays in authentication or not being presented with the MFA screen or options.

Resolution:

The best resolution for to speed up this type of issue is to use a Primary VPN group within AD, it can have nested groups as well and use a proper search filter on your "Data" tab for searching Active Directory and Group Filtering enabled for the primary group.

Here is a nicely formatted query for the "Search Filter":

(&(samAccountName=%v)(objectclass=user)(memberOf:1.2.840.113556.1.4.1941:=CN=VPN Groups,OU=Groups,DC=my,DC=corp))

The above query will look in the group "VPN Groups" and all nested groups for all objects that are members. If they are a member of said group, they will be allowed to authenticate via the RADIUS server.

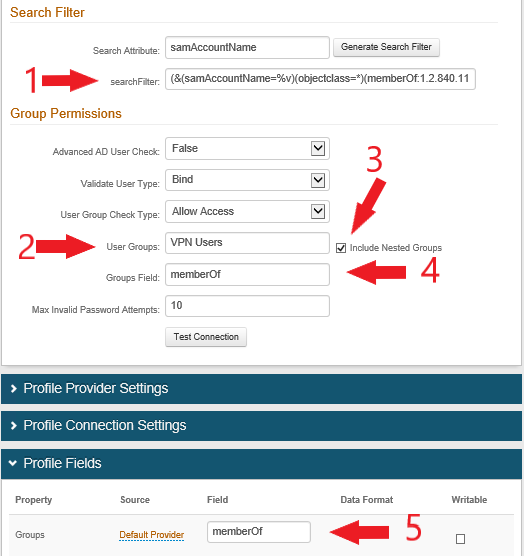

As for the console configuration, here is what needs to be set on your Data tab:

Special Considerations (optional as needed):

For additional search configurations and filters, see the following article:

How can I filter groups based off of a search filter?
