HowTo: Create a SAML Trace

Version Affected:  All

Description:

When implementing SAML applications, the Support Team may ask for a SAML trace. This article will show how to install SAML-tracer and take a SAML Trace which the Support Team will be able to view to debug the issue at hand.

Cause:

SAML debugging may be required during a new implementation/integration with the SecureAuth Workforce platform.

Resolution:

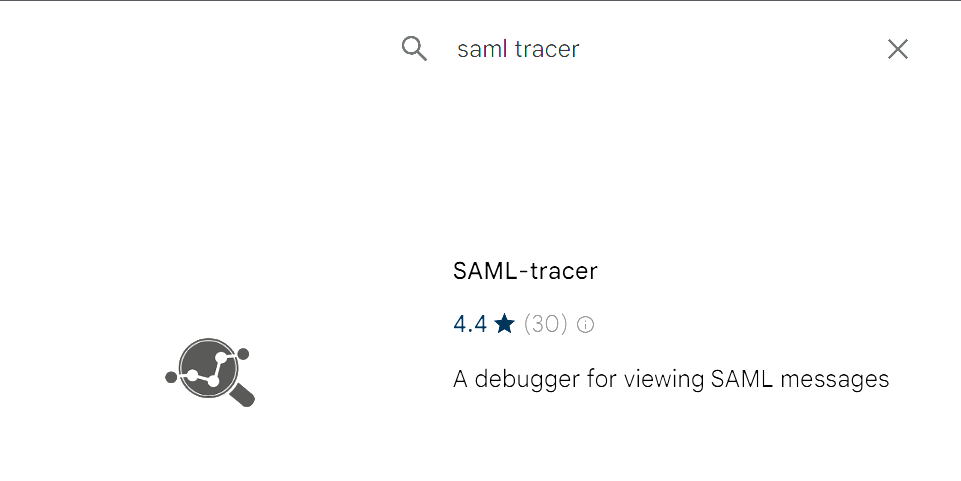

1. Install the SAML tracer add-on to your web browser. MS Edge Chromium and Google Chrome users can install the application from the Chrome store. 2. Go to: https://chromewebstore.google.com 3. Search for "SAML tracer" in the search box 4. Click on the "SAML-tracer" application 5. Click the "Install" button to have the add-on installed

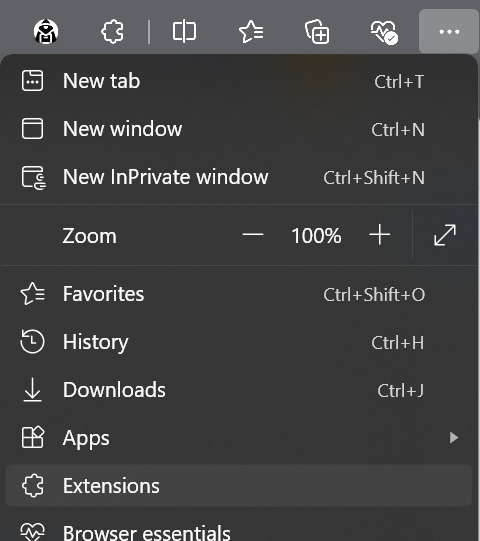

6. Once the add-on is installed, launch it via the browser's "Extensions" menu 7. Click "Extensions" 8. Click on "SAML-Tracer"
9. While SAML-tracer is open, try to launch and login to the SAML Application having issues
10. Reproduce the issue then in SAML-tracer, click on the "Export" button to download and save the SAML Trace to your local machine
11. Upload or e-Mail the SAML trace which was downloaded to the SecureAuth Support Team for review

Special Considerations (optional as needed):

If there are multiple browser tabs open, SAML-tracer may be pulling information from all SAML enabled applications currently running. It is preferred that a single Browser is open with SAML-tracer to take a clean trace of the application needing debugging.
