WebService calls failing with a 404 or 404.x error

Version Affected:  All

Description:
When attempting to configure a WebService call between Servers a 404 or 404..x error is displayed
Whilst troubleshooting the issue, browsing directly to the membership endpoint can present the below errors:
Membership Endpoint URL - https://%host%/%realm%/webservice/membershipws.svc
e.g. https://IdP_Server1.domain.local/SecureAuth12/webservice/membershipws.svc

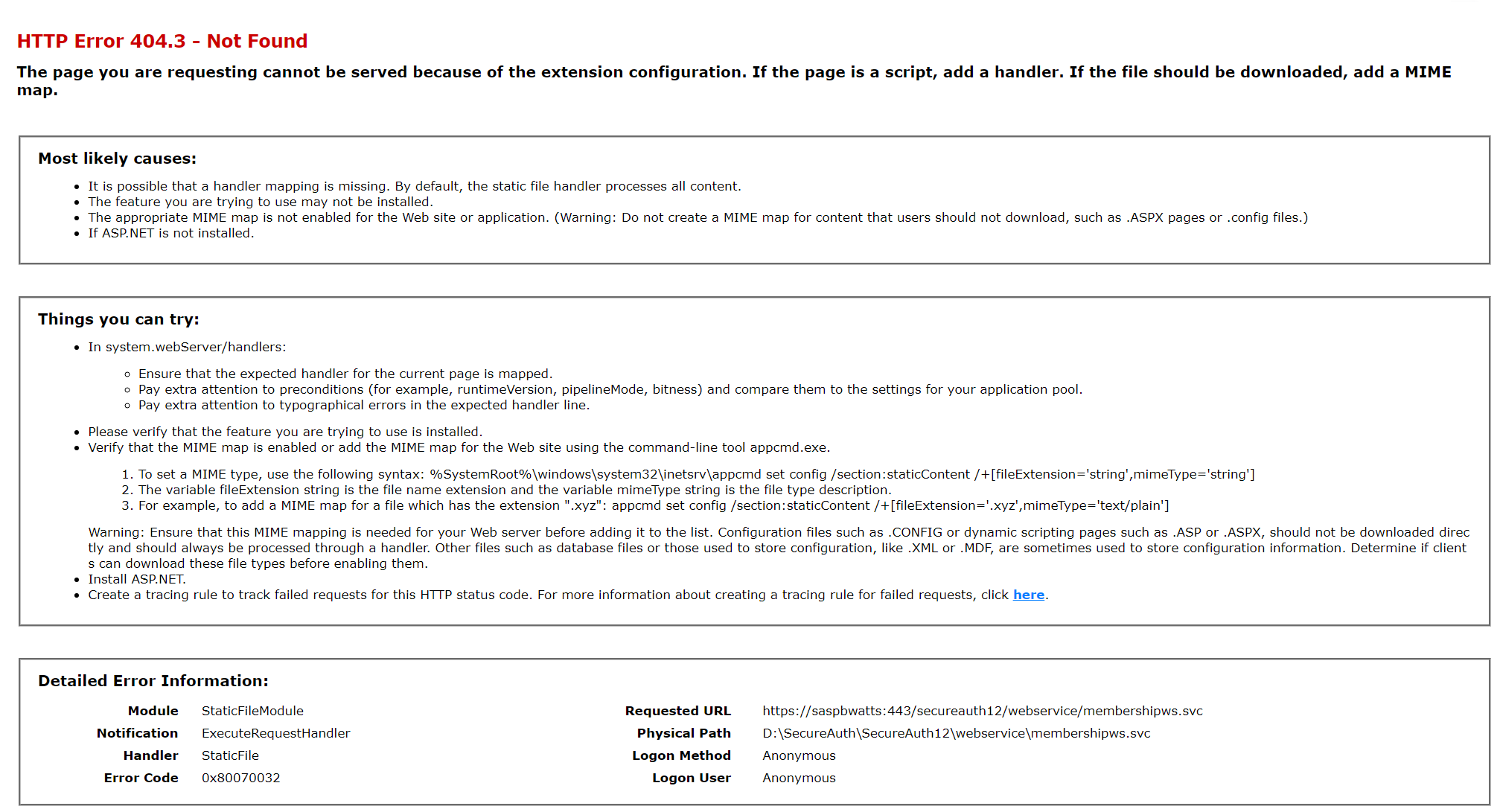

On the originating server:

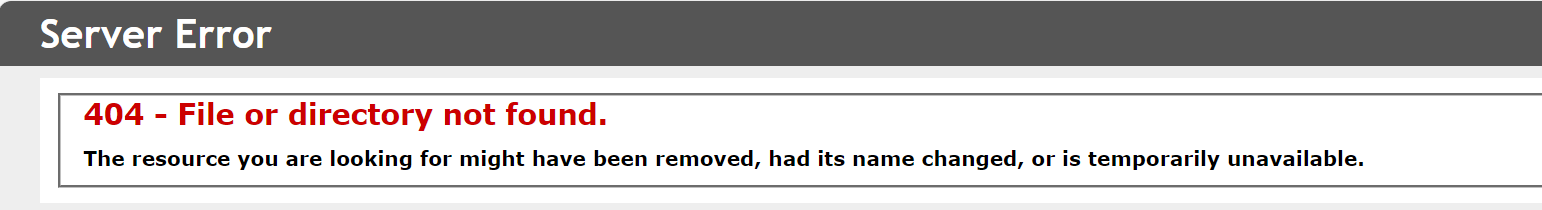

On the target server:

Cause:
This can be down to a missing Windows Feature, primarily the below:

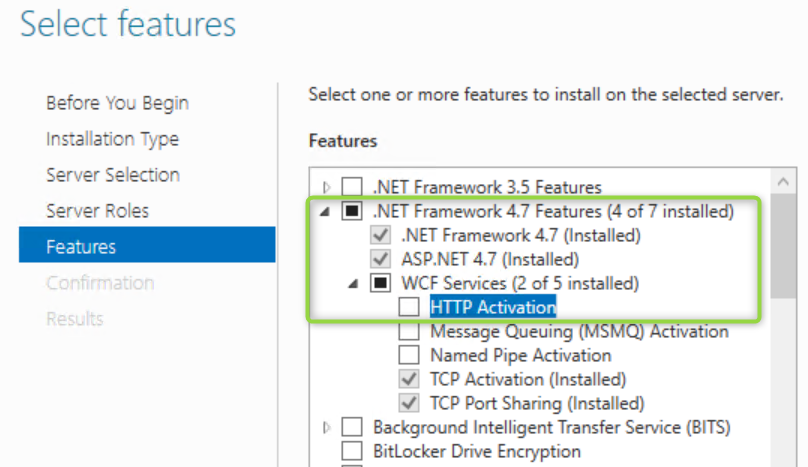

.NET Framework x.x Features - WCF Services - HTTP Activation




Our OVAs will already have the required features enabled although some 'hardening' practices may see these removed during installation of the Server by our Customers

Resolution:
Ensure HTTP Activation is enabled on the target WebService Server at a minimum
