Version Affected: All
Description:
This is not the only use case, but definitely a stickier one.
When testing Active Directory Lightweight Directory Services (ADLDS) over SSL there seems to be no tried and tested way of seeing what certificate is actually being sent from the servers SSL port to the connecting party.
Cause:
ADLDS can be tricky to setup and just because there is a certificate in the Computer's Personal store, it does not mean that that certificate is by default in use by ADLDS.
Resolution:

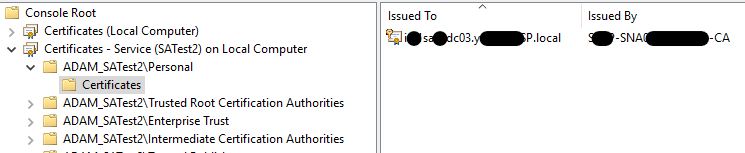

In order to make sure a certificate is listening on the ADLDS SSL port, make sure the ADAM Service account has the certificate imported into it's Personal Store:
Once a certificate with a private key is added and the Root is trusted, a simple restart of the service should bind the certificate but when testing and possibly running into issues, you can use openssl on a Linux system, by using Windows Subsystem for Linux on your Windows machine, or find an installation for Windows.
Using the following command, you can test your ADLDS SSL connection to see what certificate, if there is one, is being presented.
openssl s_client -connect myadlds.server.dom.ext:636
You will get a response something like the following.
root@sadebl4l01:~# openssl s_client -connect 10.0.0.7:636
CONNECTED(00000003)
Can't use SSL_get_servername
depth=0 CN = server.domain.local
verify error:num=20:unable to get local issuer certificate
verify return:1
depth=0 CN = server.domain.local
verify error:num=21:unable to verify the first certificate
verify return:1
depth=0 CN = server.domain.local
verify return:1
---
Certificate chain
0 s:CN = server.domain.local
i:DC = local, DC = domain, CN = SERVER-CA
---
Server certificate
-----BEGIN CERTIFICATE-----
MIIF/zCCBOegAwIBAgITeQAAAGomGCp3XmutVwACAAAAajANBgkqhkiG9w0BAQsF
...
fHfz
-----END CERTIFICATE-----
subject=CN = server.domain.local
issuer=DC = local, DC = domain, CN = SERVER-CA
---
No client certificate CA names sent
Client Certificate Types: RSA sign, DSA sign, ECDSA sign
Requested Signature Algorithms: RSA+SHA256:RSA+SHA384:RSA+SHA1:ECDSA+SHA256:ECDSA+SHA384:ECDSA+SHA1:DSA+SHA1:RSA+SHA512:ECDSA+SHA512
Shared Requested Signature Algorithms: RSA+SHA256:RSA+SHA384:ECDSA+SHA256:ECDSA+SHA384:RSA+SHA512:ECDSA+SHA512
Peer signing digest: SHA256
Peer signature type: RSA
Server Temp Key: ECDH, P-384, 384 bits
---
SSL handshake has read 2089 bytes and written 453 bytes
Verification error: unable to verify the first certificate
---
New, TLSv1.2, Cipher is ECDHE-RSA-AES256-GCM-SHA384
Server public key is 2048 bit
Secure Renegotiation IS supported
Compression: NONE
Expansion: NONE
No ALPN negotiated
SSL-Session:
Protocol : TLSv1.2
Cipher : ECDHE-RSA-AES256-GCM-SHA384
Session-ID: ...
Session-ID-ctx:
Master-Key: ...
PSK identity: None
PSK identity hint: None
SRP username: None
Start Time: 1701976732
Timeout : 7200 (sec)
Verify return code: 21 (unable to verify the first certificate)
Extended master secret: yes
---
Although the above is edited, it shows the type of information that is returned by OpenSSL querying the ADLDS SSL port and should be enough to prove that the proper certificate is bound to the ADLDS server.
