How To: Enable Extended SMTP Logging

Version Affected: All



Overview

This article explains how to enable extended SMTP logging for a realm, using .NET trace logging to capture the actual SMTP commands and server responses. This is useful when an SMTP session throws an exception with no further detail, such as OTPHtmlEmailProvider.Send, Exception: Failure sending mail.

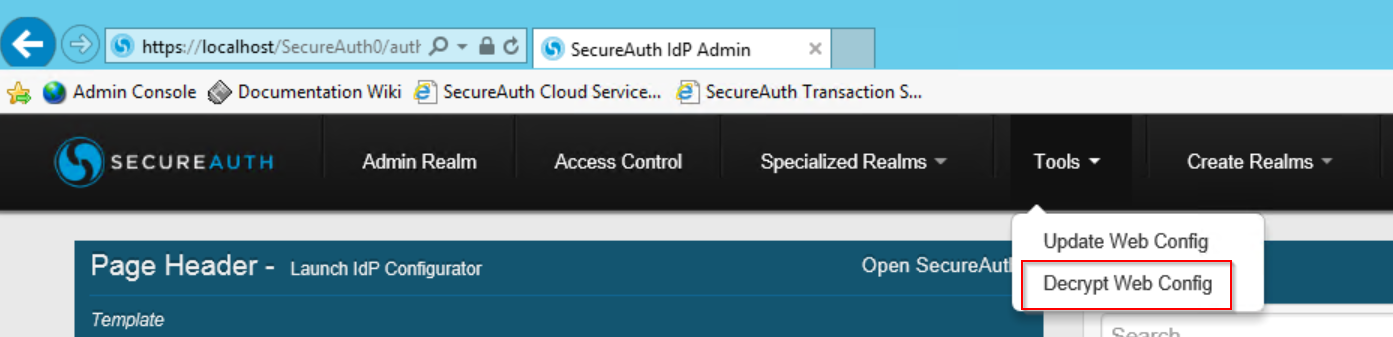

1. In the Admin Console, click the SecureAuth logo, then go to Tools → Decrypt Web Config, as shown below, and select the realm to decrypt.

2. Go to the realm's folder (for example, D:\SecureAuth\SecureAuth<realm>) and make a backup copy of web.config.
3. Edit web.config in a text editor and insert the following immediately above the closing </configuration> tag at the end of the file:

<system.diagnostics>
  <sources>
    <source name="System.Net">
      <listeners>
        <add name="TraceFile"/>
      </listeners>
    </source>
    <source name="System.Net.Sockets">
      <listeners>
        <add name="TraceFile"/>
      </listeners>
    </source>
  </sources>
  <sharedListeners>
    <add
      name="TraceFile"
      type="System.Diagnostics.TextWriterTraceListener"
      initializeData="System.net.trace.log"
    />
  </sharedListeners>
  <switches>
    <add name="System.Net" value="Verbose"/>
    <add name="System.Net.Sockets" value="Verbose"/>
  </switches>
  <trace autoflush="true" />
</system.diagnostics>

4. Save web.config, then re-encrypt it from the Admin Console.
5. Send a test email from the realm. If logging is working, a new file named System.net.trace.log is created in the realm's folder.

.NET trace logging produces substantial log file sizes. Revert this change once debugging is complete.
