Troubleshooting: "The Settings Property Is of a Non-Compatible Type" Error

Version Affected: All



Overview

After migrating a Classic realm to New Experience on a newer version, a user may see an unhandled exception with a message such as The settings property 'DigitalFP' is of a non-compatible type — the same error can name a different property, for example PNToken, AccessHistory, or OATHToken instead.



Cause

The migration can leave one or more settings properties in the realm's web.config missing their type="object" attribute. For example, an entry like:

<add name="DigitalFP" />

is missing the type attribute it needs, and should instead read:

<add name="DigitalFP" type="object" />

New Experience raises the SystemConfiguration_SettingsPropertyWrongTypeException exception whenever it reads one of these properties without its type attribute. The properties known to be affected are DigitalFP, PNToken, AccessHistory, and OATHToken.

Resolution:

For a single realm, use the built-in Update Web Config tool:

1. Log in to the Admin Console for the affected realm.

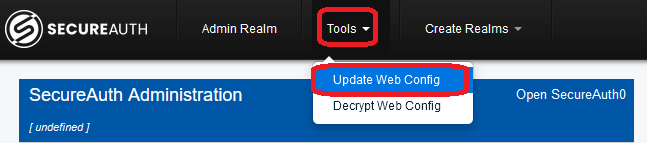

2. Go to Tools > Update Web Config.


This adds the missing type="object" attribute back to the affected settings properties for that realm.

If many realms are affected and updating them one at a time is impractical, SecureAuth Support has a PowerShell script that updates all realms (or a specific range of realms) in one pass, automatically excluding the SecureAuth0 realm and backing up each realm's web.config with a date/time stamp before making any change; it also supports a dry-run mode to preview the changes first. Contact SecureAuth Support to request this script.
