How To: Create a SAML Trace

Version Affected: All



Overview

This article explains how to install SAML-tracer and capture a SAML trace. When implementing SAML applications, the SecureAuth Support Team may ask for a SAML trace to debug the issue.

Create a SAML Trace

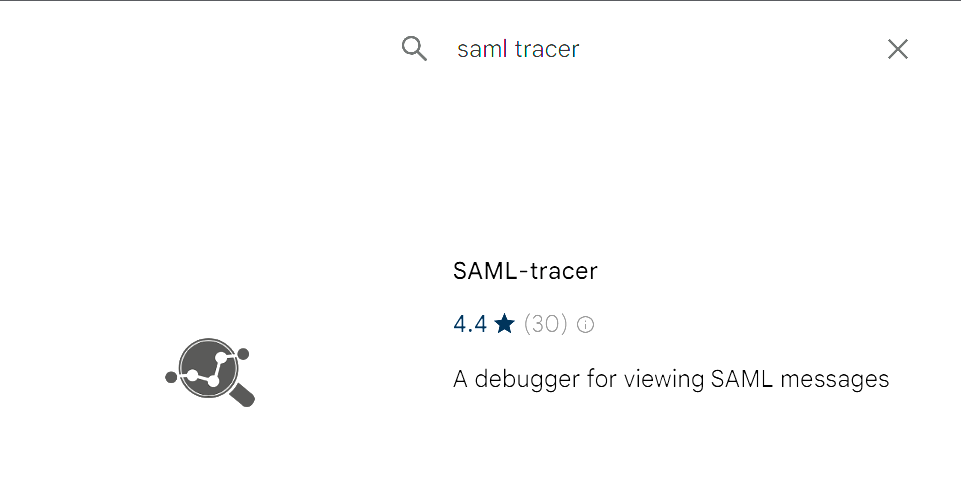

1. Install the SAML-tracer add-on to your web browser. MS Edge Chromium and Google Chrome users can install it from the Chrome Web Store: go to https://chromewebstore.google.com, search for "SAML tracer", and click the SAML-tracer result.



2. Click Install to add the extension to your browser.

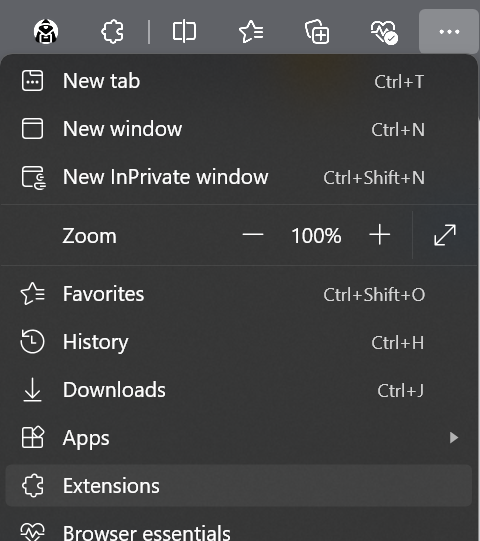

3. Once installed, launch it from the browser's Extensions menu.



4. Click SAML-tracer in the Extensions menu to open it.


5. While SAML-tracer is open, launch and log in to the SAML application having issues.
6. Reproduce the issue, then in SAML-tracer, click Export
7. Ensure None is selected for Select cookie-filter profile:, click Export to download and save the SAML trace to your local machine.
8. Upload or email the downloaded SAML trace to the SecureAuth Support Team for review.

Special Considerations

If multiple browser tabs are open, SAML-tracer may capture information from every SAML-enabled application currently running. For a clean trace of only the application you're debugging, keep a single browser window open with SAML-tracer while you reproduce the issue.
