How To: Redirect the Default IIS Site to a Realm

Version Affected: All



Overview

This article explains how to configure the Default Web Site in IIS to redirect to a specific realm — for example, the Secure Portal realm — when a customer requests this.

• Use Method 1 to redirect using the IIS URL Rewrite module. This is the more flexible option — it supports a permanent redirect and can be scoped to a specific hostname.
• Use Method 2 to redirect by editing the default index.html page directly.


In this article

• Method 1: Using the IIS URL Rewrite Module
• Method 2: Editing the Default index.html Page

Method 1: Using the IIS URL Rewrite Module

Use this method if the IIS URL Rewrite module is installed.

1. In IIS Manager, select Sites > Default Web Site.
2. Open URL Rewrite, and create a new inbound rule.

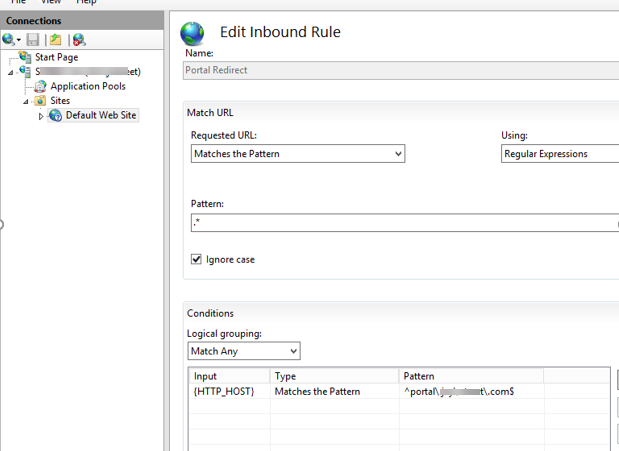

3. Under Match URL, set Requested URL to Matches the Pattern, Using to Regular Expressions, and Pattern to .* (matching any request). Check Ignore case.

4. Under Conditions, set Logical grouping to Match Any, and add a condition: Input {HTTP_HOST}, Type Matches the Pattern, Pattern ^<hostname>\.<customerdomain>\.com$ — replacing the pattern with the hostname the redirect should apply to.

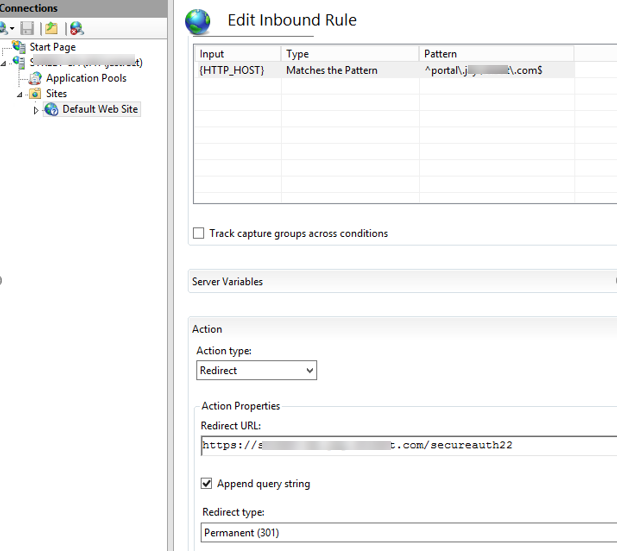

5. Under Action, set Action type to Redirect, Redirect URL to the target realm's URL (for example, https://idp.customerdomain.com/secureauth22), check Append query string, and set Redirect type to Permanent (301).

6. Apply the rule, then test by browsing to the customer's URL.

Method 2: Editing the Default index.html Page

Use this method if the IIS URL Rewrite module is not installed.

1. Back up the existing index.html file, located at D:\inetpub\wwwroot\.
2. Edit index.html to redirect to the target realm, for example:


   <html>
   <head>
   <title></title>
   <meta http-equiv="refresh" content="0;URL=https://idp.customerdomain.com/secureauth#/">
   </head>
   <body>
   </body>
   </html>

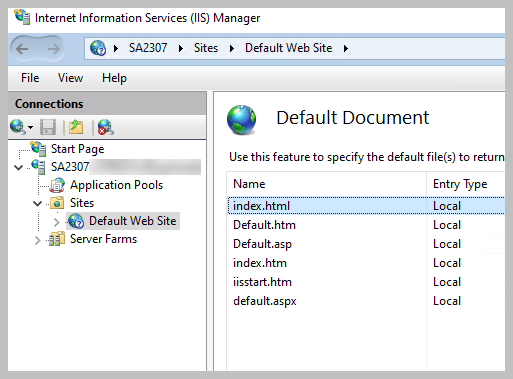

3. In IIS Manager, select Sites > Default Web Site.
4. In the center pane, double-click Default Document.
5. Move index.html to the top of the list.

6. Test by browsing to the customer's URL.
